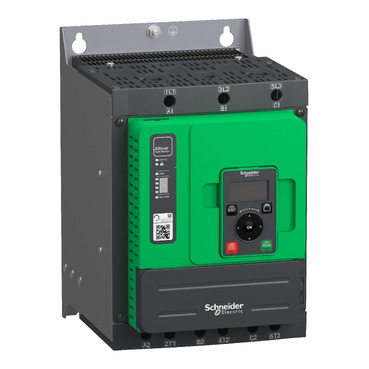

Soft starter, Altistart 480, 88A, 208 to 690V AC, control supply 110 to 230V AC.
| Specifications: |
| Range | Altistart 480 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATS480 |
| Product specific application | Process and infrastructures |
| Product destination | Asynchronous motors |
| Network number of phases | 3 phase |
| Ue power supply voltage | 208...690 V - 15...10 % |
| [Uc] control circuit voltage | 110...250 V AC 50/60 Hz - 15...10 % |
| Motor power kW | 45.0 kW at 400 V in the motor supply line normal duty
37.0 kW at 400 V in the motor supply line heavy duty
45.0 kW at 440 V in the motor supply line normal duty
37.0 kW at 440 V in the motor supply line heavy duty |
| [Ie] rated operational current | Normal duty: 88.0 A (at <40 °C) |
| Communication port protocol | Modbus serial |
| Connector type | 1 RJ45 |
| Method of access | Slave Modbus serial |
| Protection type | Phase failure: line
Integrated thermal protection: motor
Thermal protection: starter
Current overload: motor
Underload: motor
Excessive starting time, locked rotor: motor
Motor phase loss: motor
Line supply phase loss: line
Line supply phase loss: motor
Thermal protection: motor |
| Assembly style | With heat sink |
| Function available | External bypass control
Pre-heating
Smoke extraction
Multi-motor cascade
Second motor set
User management
Ports and services hardening
Security event logging
Cybersecure firmware update
Single direction |
| Device connection | In the motor supply line
To the motor delta terminals |
| Method of access | Slave Modbus serial |
| IP degree of protection | IP00 |
Dimensions (mm)
(H x W x D) | 290x190x247 mm |
| Net weight (Kg) | 8.3 Kg |
