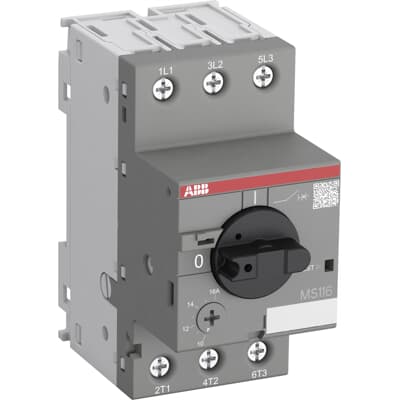

MS116 Manual Motor Starters With Thermal And Elecctromagnetic Protection 3P 0.06kW 0.16-0.25A (MS116-0.25)
Specifications | 1SAM250000R1002 |
| Range | Manual Motor Starter |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | MS116-0.25 |
| Number of Poles | 3P |
| Setting Range | 0.16 ... 0.25 A |
| Full Load Amps Motor Use | (110 ... 120 V AC) Three Phase 0.25 A
(200 V AC) Three Phase 0.25 A
(208 V AC) Three Phase 0.25 A
(220 ... 240 V AC) Three Phase 0.25 A
(440 ... 480 V AC) Three Phase 0.25 A
(550 ... 600 V AC) Three Phase 0.25 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 50 kA
(400 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(690 V AC) 30 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA
(400 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(690 V AC) 100 kA |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 0.06 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 0.25 A |
| Rated Insulation Voltage (Ui) | 690 V |
Electrical Durability | 100000 cycle |
Mechanical Durability | 100000 cycle |
Terminal Type | Screw Terminals |
Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF |
| Standards | IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
IEC 60335-2-40 A2L |
Dimensions (mm)
(HxWxD) | 90 x 45 x 85.6 mm |
Net weight (Kg) | 0.225 kg |
