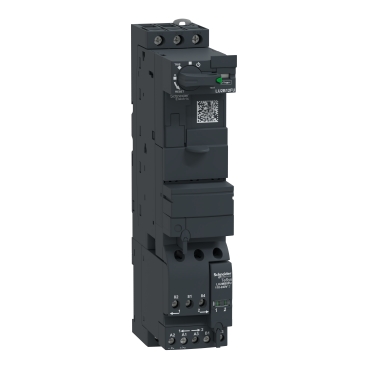

Reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 12A, 690VAC, 110 to 240VAC/DC coil
Specifications | LU2B12FU |
| Range | TeSys |
| Country of Origin (Estimated) | France |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Product name | TeSys Ultra |
| Device short name | LU2B |
| Product or component type | Reversing power base |
| Device application | Motor control
Motor protection |
| Product compatibility | Control unit LUC.X6BL
Control unit LUC.1XBL
Control unit LUC.05BL
Control unit LUC.12BL |
| Poles description | 3P |
| Suitability for isolation | Yes |
| [Ue] rated operational voltage | 690 V AC for power circuit |
| [Ith] conventional free air thermal current | 12A |
| [Ie] rated operational current | 12 A at <= 440 V
12 A at 500 V
9 A at 690 V |
| [Ics] rated service breaking capacity | 50 kA at 230 V
50 kA at 440 V
10 kA at 500 V
4 kA at 690 V |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Uc] control circuit voltage | 110...240 V AC 50/60 Hz
110...220 V DC |
| Control circuit voltage limits | 14.5 V DC drop-out
20...27 V DC in operation |
| Maximum operating rate | 3600 cyc/h |
| Standards | EN 60947-6-2
IEC 60947-6-2
UL 60947-4-1, with phase barrier
CSA C22.2 No 60947-4-1, with phase barrier |
| Compatibility code | LU2B |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-6-2 (pollution degree 3)
600 V conforming to UL 60947-4-1
600 V conforming to CSA C22.2 No 60947-4-1 |
| Fixing mode | Clipped (DIN rail)
Screw-fixed (plate) |
| Dimensions (mm)(HxWxD) | 224x45x126 mm |
| Net weight (Kg) | 1.27 Kg |
