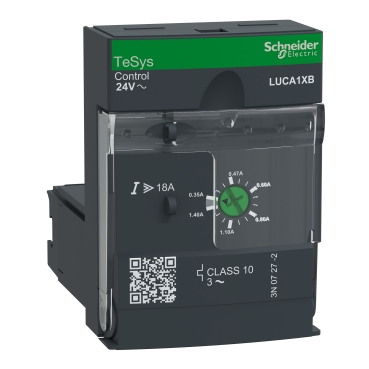

Bộ Điều Khiển Bảo Vệ Động Cơ 3P 0.35-1.4A 24VAC


Bộ Điều Khiển Bảo Vệ Động Cơ 3P 0.35-1.4A 24VAC

  • Mã sản phẩm: LUCA1XB
Giá bán: 2.061.950 ₫ (bao gồm VAT)
Giá gốc: 3.586.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 24V AC.

Specifications

LUCA1XB

RangeTeSys
Country of Origin (Estimated)France
Warranty12 months
CO/CQYes (If need)
Product nameTeSys Ultra
Device short nameLUCA
Product or component typeStandard control unit
Device applicationMotor control
Motor protection
Product specific applicationBasic protection requirements for motor starters: overload and short-circuit
Main function availableProtection against phase failure and phase imbalance
Protection against overload and short-circuit
Manual reset
Earth fault protection
Product compatibilityPower base LUB12
Power base LUB32
Power base LUB38
Power base LUB120
Power base LUB320
Power base LUB380
Reversing contactor breaker LU2B12B
Reversing contactor breaker LU2B32B
[Ue] rated operational voltage690 V AC
Load type3-phase motor - cooling: self-cooled
Motor power kW0.25 kW at 400...440 V AC 50/60 Hz
Rated motor current adjustment range0.35…1.4 A
Thermal overload classClass 10 - frequency limit: 40…60 Hz - temperature compensation: -25…70 °C conforming to IEC 60947-6-2
Class 10 - frequency limit: 40…60 Hz - temperature compensation: -25…70 °C conforming to UL 508
[Uc] control circuit voltage24 V AC
Tripping threshold14.2 x Ir +/- 20 %
StandardsEN 60947-6-2
IEC 60947-6-2
UL 60947-4-1, with phase barrier
CSA C22.2 No 60947-4-1, with phase barrier
Fixing modePlug-in (front face)
Dimensions (mm)
(HxWxD)
66x45x60 mm
Net weight (Kg)0.135 Kg
