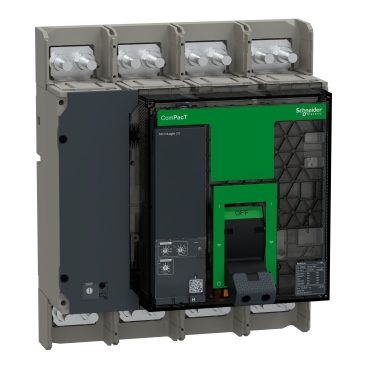

Specifications | C080H420FM |
| Range | ComPacT NS (Seri mới) |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Range of product | ComPacT NS630b...1600 new generation |
| Device application | Distribution |
| Poles description | 4P |
| Protected poles description | 4D |
| (In) rated current up to 65 °C | 800A at 50 °C |
| Network type | AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Trip unit name | MicroLogic 2.0 A |
| Trip unit technology | Electronic |
| Trip unit protection functions | LI |
| Protection type | L : for overload protection (long time)
I : for instantaneous short-circuit protection |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| Trip unit rating | 800A |
| [Ir] long-time protection pick-up adjustment range | 0.4...1 x In |
| Control type | Manually operated |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| Connection pitch | 70 mm |
| Breaking capacity [Icu] | 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 10000 cycles |
| Auxiliary contact composition | 1 NO/NC |
| Electrical durability | 2000 cycles at 690 V In
4000 cycles at 690 V In/2
5000 cycles at 440 V In
6000 cycles at 440 V In/2 |
Dimensions (mm)
(HxWxD) | 4P / 327x280x147 mm |
| Net weight (Kg) | 4P/18Kg |
| Door cutout Dimensions (XxY) | 4P/244x216 mm |
