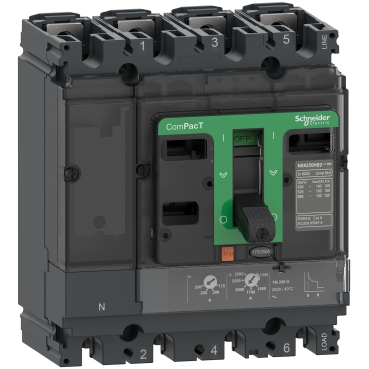

Bộ Ngắt Mạch Tự Động NSX100H 4P 63A 70KA TMD


MCCB 4P 63A 70KA NSX100H TMD

  • Mã sản phẩm: C10H6TM063
Giá bán: 4.430.690 ₫ (bao gồm VAT)
Giá gốc: 9.427.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Circuit breaker, ComPacT NSX100H, 70kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 63A

Specifications
RangeComPacT NSX new generation
Country of Origin (Estimated)India
Warranty12 months
CO/CQYes (if)
Product name & Device short nameComPacT NSX100H
Device applicationDistribution
Poles description3P /4P
Protected poles description3P 3d /4P 3d
[In] rated current63 A at 40 °C
Network typeAC /DC
[Ue] rated operational voltage690 V AC 50/60 Hz
Suitability for isolationYes conforming to EN/IEC 60947-2
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Long-time pick-up adjustment type Ir (thermal protection)Adjustable
Trip unit rating63 A
[Ir] long-time protection pick-up adjustment range0.7...1 x In
[Ui] rated insulation voltage800 V AC 50/60 Hz
Connection pitch35 mm
Breaking capacity [Icu]70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability50,000 cycles
Electrical durability30,000 cycles at 440 V In
Protection typeL : for overload protection (thermal)
I : for short-circuit protection (magnetic)
Dimensions (mm)
(WxHxD)
3P /105x161x86 mm
4P/140x161x86 mm
Net weight (Kg)3P/2.05Kg
4P/2.4 Kg
Door cutout Dimensions (XxY)

3P/96x78 mm
4P/96x78 mm



Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
1C10H6TM063_Datasheet.pdf
2Catalogue MCCB Compact T NSX
3Bảng giá Price list Máy Cắt ComPacT NSX Schneider
