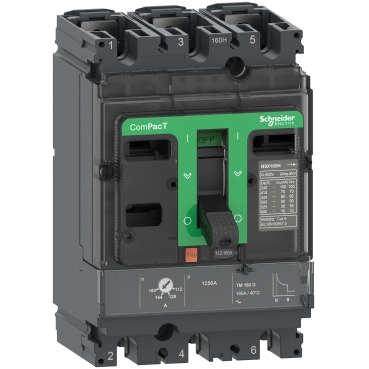

Circuit breaker, ComPacT NSX100N, 50kA/415VAC, 3 poles, TMD trip unit 25A.
Specifications : C10N3TM025 | |
| Range | ComPacT NSX new generation | |
| Country of Origin (Estimated) | India | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | ComPacT NSX100N | |
| Device application | Distribution | |
| Poles description | 3P /4P | |
| Protected poles description | 3P 3d /4P 3d | |
| [In] rated current | 25 A at 40 °C | |
| Network type | AC /DC | |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz | |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 | |
| Trip unit name | TM-D | |
| Trip unit technology | Thermal-magnetic | |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable | |
| Trip unit rating | 25 A | |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In | |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz | |
| Connection pitch | 35 mm | |
| Breaking capacity [Icu] | 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service breaking capacity | 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 50,000 cycles | |
| Electrical durability | 30,000 cycles at 440 V In | |
| Protection type | L : for overload protection (thermal)
I : for short-circuit protection (magnetic) | |
Dimensions (mm)
(WxHxD) | 3P /105x161x86 mm
4P/140x161x86 mm | |
| Net weight (Kg) | 3P/2.05Kg
4P/2.4 Kg | |
| Door cutout Dimensions (XxY) | 3P/96x78 mm
4P/96x78 mm | |
