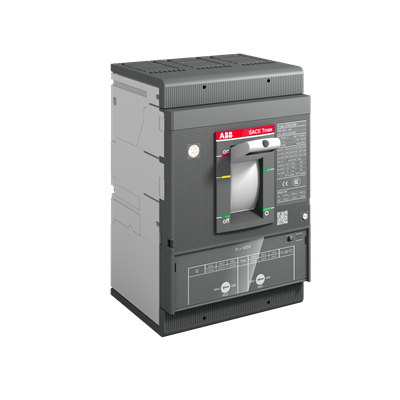

Bộ Ngắt Mạch Tự Động XT5S 3P 400A 50KA Trip TMA


MCCB 3P 400A 50KA (XT5S)

  • Mã sản phẩm: 1SDA100415R1
Giá bán: 10.365.410 ₫ (bao gồm VAT)
Giá gốc: 24.679.600 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Specifications
RangeMoulded Case Circuit Breaker SACE Tmax XT5S
Country of Origin (Estimated)Italy (Other)
Warranty12 months
CO/CQYes (if)
Product name & Device short nameTMAX XT5S
Extended Product TypeXT5S 400 TMA 400-4000 3p F F
Device applicationWind, Solar, Data Center, Building Infrastructure, GenSet, Mining, Marine, Industries, Utilities.
Poles description3P
Rated Current (In)400 A
Network typeAC
[Ue] rated operational voltage690 V AC
Suitability for isolationYes conforming to IEC 60947-2;
ReleaseTMA
Release TypeTM
Protection typeThermal-magnetic
Setting Range280…400 A
[Ui] rated insulation voltage1000 V
Breaking capacity [Icu](380 V AC) 50 kA
(415 V AC) 50 kA
[Ics] rated service breaking capacity(380 V AC) 50 kA
(415 V AC) 50 kA
Mechanical durability20000 cycle
Electrical durability7000 cycle
Dimensions (mm)
(HxWxD)
3P: 205x140x103.5 mm
4P:
Net weight (Kg)3P: 4.775 kg
4P:
Door cutout Dimensions (XxY) Flange for the compartment door3P:
4P:

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
1Catalogua MCCB TMAX XT ABB
2Bảng giá Price list Máy Cắt MCCB Tmax XT-2024
