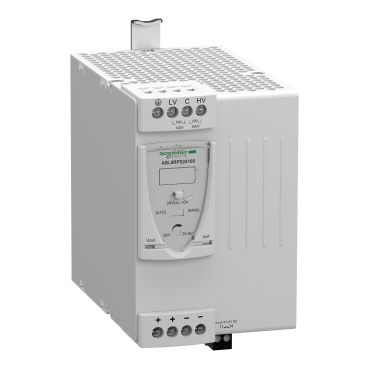

Universal Power Supply, Phaseo, 1 or 2 Phase, 100 to 500 V, 24 V, 10 A.
Specifications | ABL8RPS24100 |
| range of product | Modicon Power Supply |
| Country of Origin (Estimated) | Philippines |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase, terminal(s): N-L1
200...500 V AC phase to phase, terminal(s): L1-L2 |
| Rated power in W | 240 W |
| Output voltage | 24 V DC |
| Power supply output current | 10 A |
| Permissible temporary current boost | 1.5 x In (for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Input voltage limits | 170...550 V AC
85...132 V AC |
| Inrush current | 30 A |
| Power factor | 0.68 at 240 V AC
0.69 at 120 V AC |
| Efficiency | 87% |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 31 W |
| Output protection type | Against overload, protection technology: manual or automatic reset
Against overvoltage, protection technology: 30...32 V, manual reset
Against short-circuits, protection technology: manual or automatic reset
Against undervoltage, protection technology: tripping if U < 21.6 V
Thermal, protection technology: automatic reset |
| Connections - terminals | Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection
Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection
Screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection
Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection |
| Status LED | 1 LED (green and red) output voltage
1 LED (green, red and orange) output current |
| Dimensions (WxHxD) | 125 x 86 x 145 mm |
| Net weight | 1 Kg |
