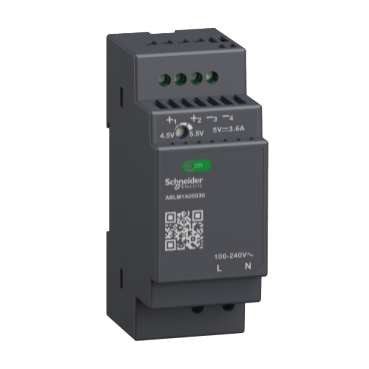

Regulated Power Supply, 100-240V AC, 5V 3.6 A, single Phase, Modular.
Specifications | ABLM1A05036 |
| range of product | Modicon Power Supply |
| Country of Origin (Estimated) | Thailand |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Modular |
| Nominal input voltage | 100...240 V AC single phase
100...240 V AC phase to phase |
| Rated power in W | 18 W |
| Output voltage | 5 V DC |
| Power supply output current | 3.6 A |
| Input voltage limits | 90...264 V AC |
| Nominal network frequency | 50…60 Hz |
| Maximum leakage current | 0.25 mA 240 V AC |
| Inrush current | 25 A at 115 V
50 A at 230 V |
| Power factor | 0.48 at 115 V AC
0.38 at 230 V AC |
| Efficiency | 80 % at 115 V AC
80 % at 230 V AC |
| Output voltage adjustment | 4.5...5.5 V |
| Power dissipation in W | 4.5 W |
| Current consumption | < 0.6 A 115 V AC
< 0.4 A 230 V AC |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset
Against over temperature, protection technology: manual reset
Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection: 0.5...1.5 mm², (AWG 20...AWG 16) without wire end ferrule for input/output
Screw connection: 0.5...1 mm², (AWG 20...AWG 18) with wire end ferrule for input/output |
| Line and load regulation | < 0.5 % at in line
< 1 % at 0 to 100 % load |
| Line and load regulation | < 0.5 % at in line
< 1 % at 0 to 100 % load |
| Output coupling | Serial |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Double-profile DIN rail
panel mounting |
| Dimensions (WxHxD) | 91x36x55.6 mm |
| Net weight | 0.170 Kg |
