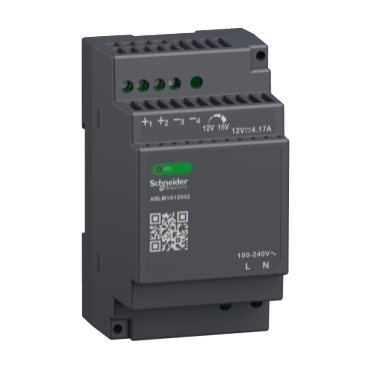

Bộ Nguồn Gắn Din-rail 1 Pha ABLM, 50W 4.2A 12VDC


Bộ Nguồn Gắn Din-rail 1 Pha ABLM, 50W 4.2A 12VDC

  • Mã sản phẩm: ABLM1A12042
Giá bán: 1.483.350 ₫ (bao gồm VAT)
Giá gốc: 2.431.682 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Regulated Power Supply, 100-240V AC, 12V 4.2 A, single Phase, Modular.

Specifications

ABLM1A12042

range of productModicon Power Supply
Country of Origin (Estimated)India
Warranty12 months
CO/CQYes (if)
product or component typePower supply
Power supply typeRegulated switch mode
Variant optionModular
Nominal input voltage100...240 V AC single phase
100...240 V AC phase to phase
Rated power in W50 W
Output voltage12 V DC
Power supply output current4.17 A
Input voltage limits90...264 V AC
Maximum leakage current0.25 mA 240 V AC
Inrush current25 A at 115 V
50 A at 230 V
Power factor0.48 at 115 V AC
0.38 at 230 V AC
Efficiency85 % at 115 V AC
85 % at 230 V AC
Power dissipation in W4.6 W
Output voltage adjustment12...15 V
Output protection typeAgainst overload and short-circuits, protection technology: automatic reset
Against over temperature, protection technology: manual reset
Against overvoltage, protection technology: manual reset
Connections - terminalsScrew connection: 0.5...1.5 mm², (AWG 20...AWG 16) without wire end ferrule for input/output
Screw connection: 0.5...1 mm², (AWG 20...AWG 18) with wire end ferrule for input/output
Dimensions (WxHxD)91x53x55.6 mm
Net weight0.221 Kg
