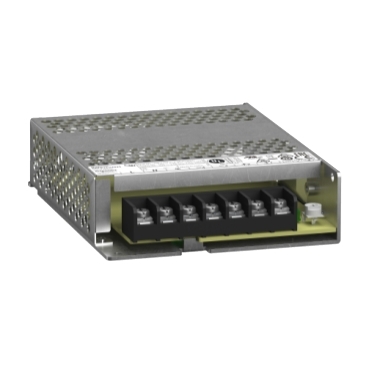

Regulated Power Supply, 100...240V AC, 24V 4.5A, single Phase, Panel Mount.
Specifications | ABLP1A24045 |
| range of product | Modicon Power Supply |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Panel mount |
| Enclosure material | Aluminium |
| Nominal input voltage | 100...240 V AC single phase |
| Rated power in W | 100 W |
| Output voltage | 24 V DC |
| Power supply output current | 4.5 A |
| Input voltage limits | 90...264 V AC |
| Maximum leakage current | 1 mA 240 V AC |
| Inrush current | 45 A at 115 V
85 A at 230 V |
| Power factor | 0.55 at 115 V AC
0.45 at 230 V AC |
| Efficiency | 89 % at 230 V AC |
| Power dissipation in W | 20 W |
| Output voltage adjustment | 21.6...26.4 V |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset
Against over temperature, protection technology: manual reset
Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection: 0.5...1.5 mm², (AWG 20...AWG 16) without wire end ferrule for input/output
Screw connection: 0.5...1 mm², (AWG 20...AWG 18) with wire end ferrule for input/output |
| Dimensions (WxHxD) | 30x97x129 mm |
| Net weight | 0.3 kg |
