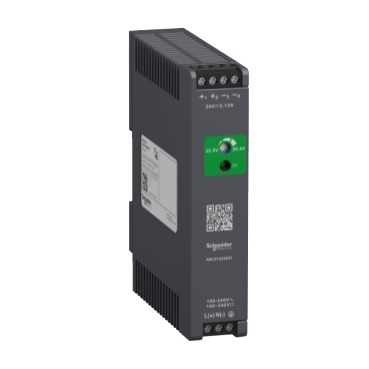

Regulated Power Supply, 100 to 240V AC, 24V, 3.1A, single Phase, Optimized.
Specifications | ABLS1A24031 |
| range of product | Modicon Power Supply |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure material | Plastic |
| Nominal input voltage | 100...240 V AC single phase
100...240 V AC phase to phase
140...340 V DC |
| Rated power in W | 75 W |
| Output voltage | 24 V DC |
| Power supply output current | 3.13 A |
| Input voltage limits | 85...264 V AC without temperature derating
120...375 V DC without temperature derating
85…120 V DC with temperature derating |
| Maximum leakage current | 1 mA 240 V AC |
| Inrush current | 40.0 A at 115 V
80.0 A at 230 V |
| Power factor | 0.55 at 115 V AC
0.45 at 230 V AC |
| Efficiency | 88 % at 230 V AC |
| Power dissipation in W | 15 W |
| Output voltage adjustment | 21.6...26.4 V |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset
Against over temperature, protection technology: manual reset
Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) for output
Screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) for input |
| Status LED | 1 LED (green) output voltage |
| Dimensions (WxHxD) | 123.6x27x102 mm |
| Net weight | 0.22 Kg |
