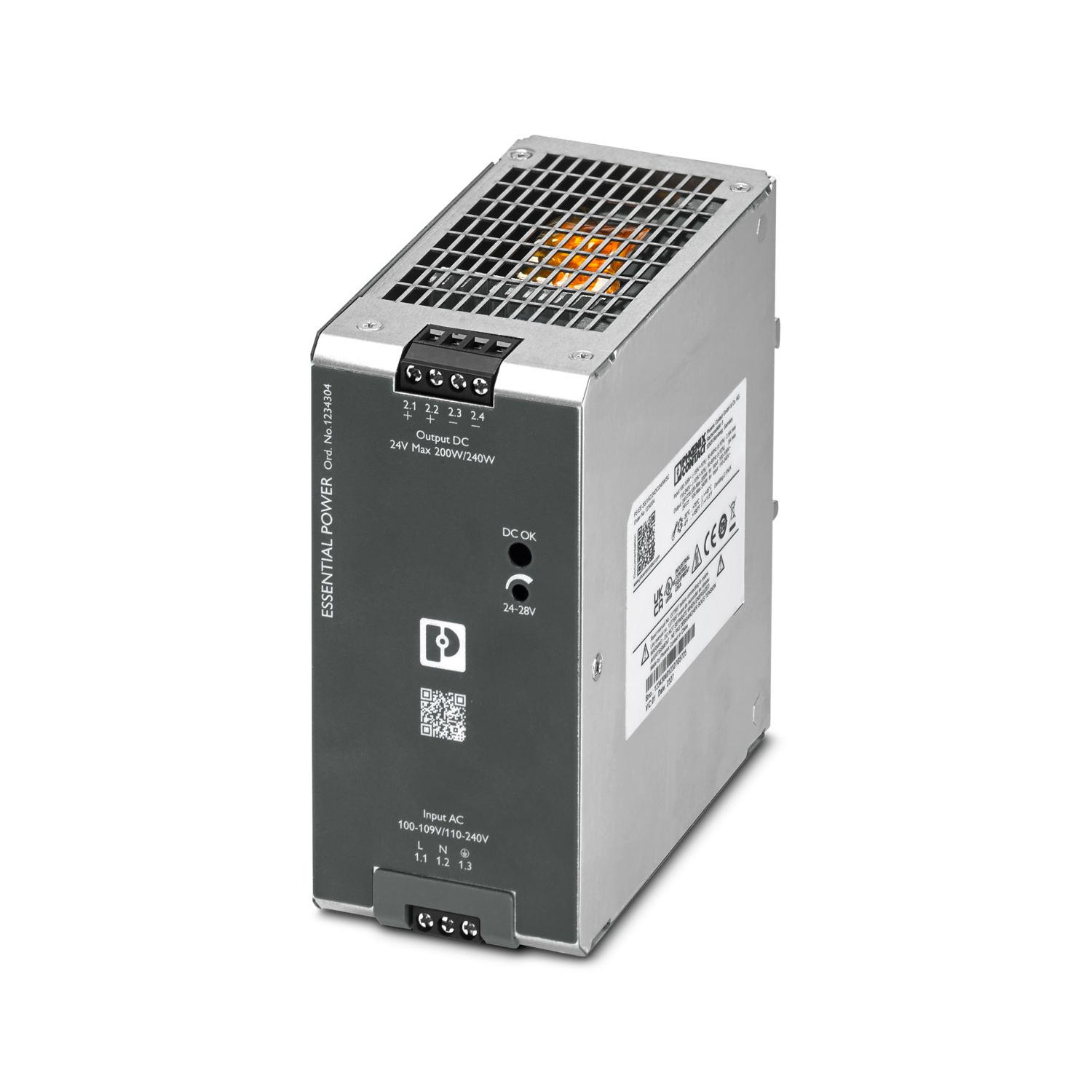

PS-EE-2G/1AC/24DC/240W/SC - Power supply - 1234304
Primary-switched power supply unit, ESSENTIAL POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 10 A, adjustable from 24 V DC ... 28 V DC
| Supply system configuration | TN, TT, IT (PE) |
| Nominal input voltage range | 100 V AC ... 240 V AC |
| Nominal output voltage | 24 V DC |
| Connection method | Screw connection |
| Output power (PN) | 240 W (240 V AC) |
| 200 W (100 V AC) |
| Width | 60 mm |
| Height | 124 mm |
| Depth | 125 mm |
