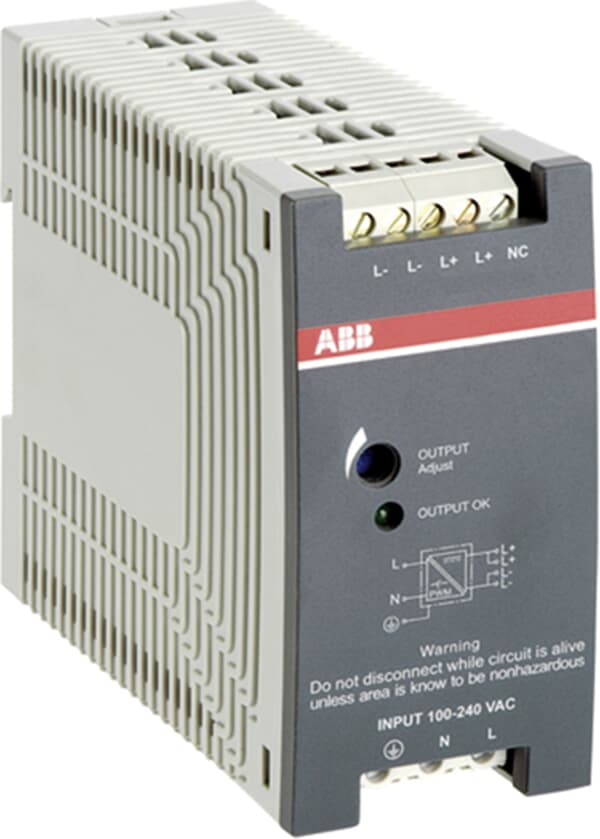

Power supply In:100-240VAC Out: 24VDC/1.25A (CP-E 24/1.25)
Specifications | 1SVR427031R0000 |
| Extended Product Type | CP-E 24/1.25 |
| Country of Origin (Estimated) | Taiwan (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Power Supply |
| Catalog Description | CP-E 24/1.25 Power supply In:100-240VAC Out: 24VDC/1.25A |
| Function | Switch mode power supply |
| Number of Phases | 1 Phase |
| Rated Input Voltage (UIN) | 100 ... 240 V AC |
| Input Voltage (Uin) | 85 ... 264 V AC
90 ... 375 V DC |
| Characteristic of Output | U/I characteristic curve |
| Rated Output Power | 30 W |
| Output Power | 30 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Rated Output Current | 1.25 A |
| Output Current | 1.25 A |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | ANSI/ISA-12.12
CAN/CSA C22.2 No.107.1
CAN/CSA C22.2 No.213
CAN/CSA C22.2 No.223
CAN/CSA C22.2 No.60950
IEC/EN 63000
IEC 60950-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 1310
UL 508
UL 60950 |
| Dimensions (WxHxD) | 40.5 x 90 x 114 mm |
| Net weight | 0.27 Kg |
