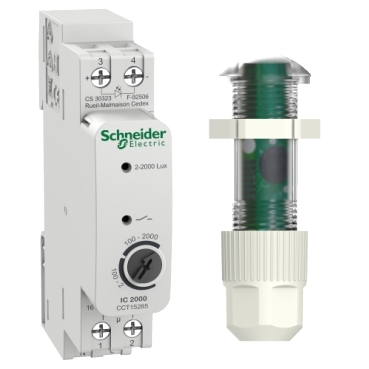

Specifications | CCT15285 |
| Range of product | Twilight switch |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Device short name | IC2000 |
| Provided equipment | Twilight sensor indoor |
| Load type | Manual time changeover |
| Device application | Building |
| Load type | incandescent lamp: 2600 W
halogen lamp: 2600 W
non-corrected fluorescent tube: 2300 VA
serial-compensated fluorescent tube: 2300 VA
parallel compensated fluorescent lamp: 730 VA (80 µF)
compact fluorescent lamp: 170 W
< 2 W LED lamp: 30 W
> 2 W LED lamp: 200 W |
| Number of channels | 1 |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Output type | Dry contact |
| Accuracy | +/- 0.25 s/day 25 °C |
| Contacts type and composition | 1 NO |
| Time delay | 20 s on
80 s off |
| Light intensity adjustment | 2…2000 lux |
| Control type | By brightness detection |
| Connections - terminals | 2x 0.5…2.5 mm² screw terminals solid or flexible
1 x 2.5 mm² screw terminals solid or flexible with sleeve |
| Mounting support | TH35 DIN rail conforming to EN 60715 |
| Ambient air temperature for operation | --30…55 °C |
| IP degree of protection | IP20
IP66 (sensor)front
IP40 (sensor)rear |
| Dimensions (WxHxD) | 18x85.5x67mm |
| Net weight | 87.5 g |
