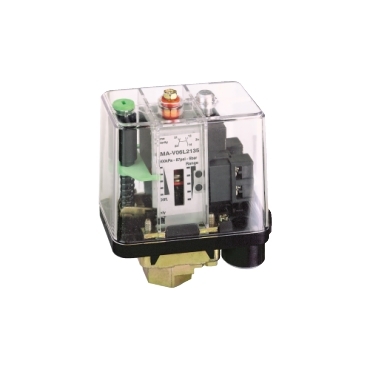

Pressure switch XMA 12 bar, adjustable scale 2 thresholds, 1 C/O.
Specifications | XMAV12L2135 |
Range of product | TE PRESSURE SSRS XM |
Pressure sensor type | ELECTROMECH PRESSURE SENSOR |
| Pressure sensor name | XMA |
| Contacts type and composition | 1 C/O snap action |
| Controlled fluid | Air (0-55 °C),
fresh water (0-55 °C),
sea water (0-55 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 22 |
| Cable entry | 2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300 |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm² |
| Electrical circuit type | CONTROL CIRCUIT |
| Setting | EXTERNAL |
| Colour of cover | TRANSPARENT |
| Pressure switch type of operation | REGULATION BTWN 2 THRESHOLDS |
| Scale type | FIXED DIFFERENTIAL |
| Local display | WITHOUT |
| Enclosure material | PC IMPREGNATED W LEXAN 123 |
| Pressure actuator | DIAPHRAGM |
| Materials in contact with fluid | CANVAS COVERED NITRILE
CHROMATED ZINC ALLOY |
| Operating rate | 10.0000 CYCLE_PER_MINUTE |
