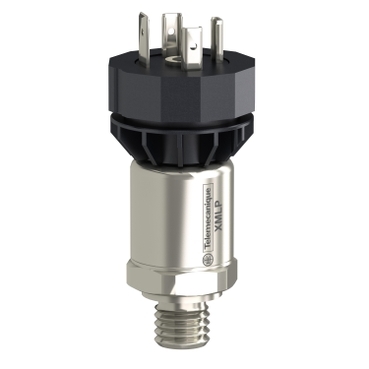

Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 10 bar, G1/4 A male, 4...20 mA.
Specifications | XMLP010BC21F |
| Range of product | Telemecanique Pressure sensors XM |
| Pressure sensor type | Pressure transmitter |
| Pressure sensor name | XMLP |
| Pressure rating | 10 bar |
| Local display | Without |
| Controlled fluid | Air (-30…135 °C)
Fresh water (0…135 °C)
Hydraulic oil (-30…135 °C)
Gas (-30…135 °C)
Refrigeration fluid (-30…135 °C) |
| Fluid connection type | G 1/4A (male) conforming to DIN 3852-E |
| Electrical connection | 1 male connector EN 175301-803-A (ex DIN43650) 3 pins |
| [Us] rated supply voltage | 12...24 V DC SELV (voltage limits: 7…33 V) |
| Current consumption | < 23 mA |
| Type of output signal | Analogue |
| Analogue output function | 4...20 mA, 2-wire |
| Pressure setting range | 0…10 bar |
| Maximum permissible accidental pressure | 30 bar |
| Destruction pressure | 60 bar |
| Materials in contact with fluid | Fluorocarbon FPM
Stainless steel AISI 316L |
| Operating position | Any position |
| Protection type | Load short-circuit
Reverse polarity |
| Response time on output | <= 2 ms 10...90 % of full scale |
| Mechanical durability | 10000000 cycles |
| Standards | IEC 61326-2-3
NSF ANSI 61 |
| Diameter | 26 mm |
| Length | 60.6 mm |
| Net weight (Kg) | 0.106 kg |
