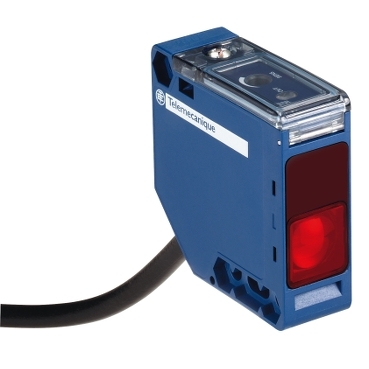

Photoelectric sensors XU, XUK, emitter, 12...24 VDC, cable 2 m.
Specifications | XUK2AKSNL2T |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor transmitter |
| Sensor name | XUK |
| Sensor design | Compact 50 x 50 |
| Detection system | Thru beam |
| Material | Plastic |
| Supply circuit type | DC |
| Wiring Technique | 3-wire |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Sn] nominal sensing distance | 98.4 ft (30 m) thru beam need a receiver |
| Emission | Infrared thru beam |
| Enclosure Material | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 147.6 ft (45 m) thru beam |
| Add on input | Test by emission breaking |
| Status LED | 1 LED green)supply on |
| [Us] rated supply voltage | 12...24 V DC reverse polarity protection |
| Supply voltage limits | 10…36 V DC |
| Current consumption | <= 35 mA no-load |
| Setting-up | Without sensitivity adjustment |
| Depth | 50 mm |
| Height | 50 mm |
| Width | 18 mm |
| Net Weight | 0.19 kg |
