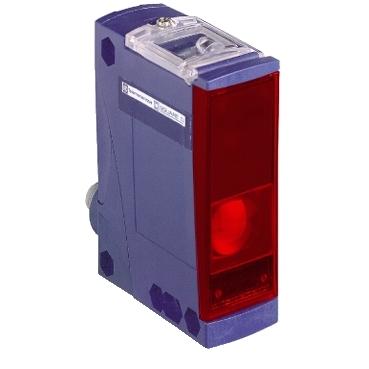

Photoelectric sensors XU, XUX, emitter, 12...24 VDC, M12.
Specifications | XUX0AKSAM12T |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose multimode |
| Electronic sensor type | Photo-electric sensor transmitter |
| Sensor name | XUX |
| Sensor design | Compact 92 x 71 |
| Detection system | Thru beam |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring Technique | 3-wire |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M12, 4 pins |
| [Sn] nominal sensing distance | 40 m thru beam need a receiver |
| Emission | Infrared thru beam |
| Enclosure Material | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 60 m thru beam |
| Add on output | Test by emission breaking |
| Status LED | 1 LED (green) for supply on |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Supply voltage limits | 10…36 V DC |
| Current consumption | 20 mA no-load |
| Setting-up | Without sensitivity adjustment |
| Depth | 77 mm |
| Height | 92 mm |
| Width | 31 mm |
| Net Weight | 0.2 kg |
