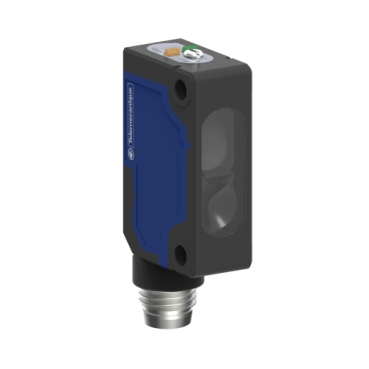

Photoelectric sensors XU, photo electric sensor, miniature, polarised, Smax=8 m, PNP, connector M8
Specifications | XUM9APXBM8 |
| Range of product | Telemecanique Photoelectric sensors XU |
| Pressure sensor type | Photo-electric sensor |
| Pressure sensor name | XUM |
| Sensor design | Miniature |
| Detection system | Polarised reflex |
| Materia | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| Discrete output type | PNP |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M8, 4 pins |
| Emission | Red LED polarised reflex |
| [Sn] nominal sensing distance | 6.7 m with reflector 50 x 50 mm |
| Enclosure materia | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 8 m |
| Output type | Solid state |
| Status LED | Stability: 1 LED (green)
Output state: 1 LED (orange) |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Supply voltage limits | 10…30 V DC |
| Setting-up | Sensitivity by potentiometer |
| Depth | 20 mm |
| Height | 44 mm |
| Width | 10 mm |
| Net Weight | 0.01 kg |
