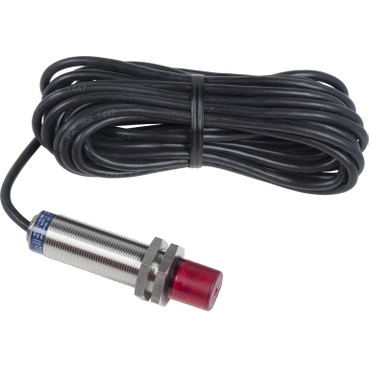

Photoelectric sensors XU, XU2, thru beam, 12...24 VDC, M18.
Specifications | XU2N18PP9AAL5R |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XU2 |
| Sensor design | Cylindrical M18 |
| Line of sight type | Axial |
| Electrical connection | Cable |
| Emission | Infrared thru beam |
| Enclosure material | Stainless steel : 304 CU |
| Lens material | PMMA |
| Output type | Solid state |
| Add on output | Without |
| Status LED | 1 LED (green) for supply on
1 LED (yellow) for output state |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Supply voltage limits | 10…30 V DC |
| Setting-up | Without sensitivity adjustment |
| Kit composition | Receiver |
| IP degree of protection | IP67 conforming to IEC 60529 |
