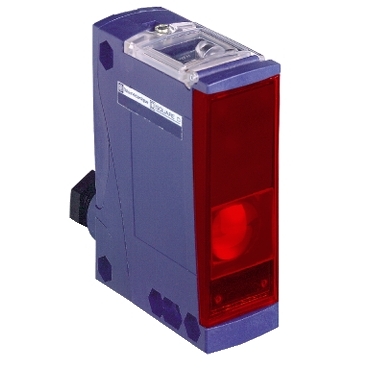

Photoelectric sensors XU, XUX, emitter, 24...240VAC/DC, terminals.
Specifications | XUX0ARCTT16T |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose multimode |
| Electronic sensor type | Photo-electric sensor transmitter |
| Sensor name | XUX |
| Sensor design | Compact 92 x 71 |
| Detection system | Thru beam |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | AC/DC |
| Wiring Technique | 3-wire |
| Electrical connection | Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor |
| [Sn] nominal sensing distance | 131.2 ft (40 m) thru beam need a receiver |
| Emission | Infrared thru beam |
| Enclosure Material | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 196.9 ft (60 m) thru beam |
| Add on output | Test by emission breaking |
| Cable entry | 1 entry for M16 x 1.5 cable gland 0.3…0.4 in (7…10 mm) |
| Status LED | 1 LED (green)supply on |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Supply voltage limits | 20…264 V AC/DC |
| Current consumption | 20 mA no-load |
| Time delay range | 0.02...15 s monostable, on-delay or off-delay (programmable) |
| Setting-up | Without sensitivity adjustment |
| Depth | 77 mm |
| Height | 92 mm |
| Width | 31 mm |
| Net Weight | 0.2 kg |
