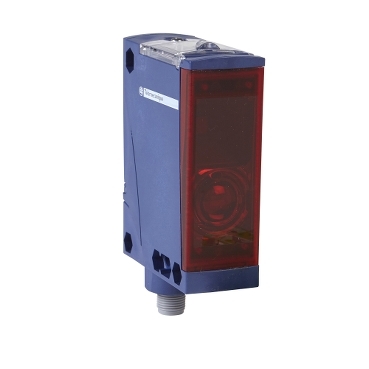

Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 12...24 VDC, M12.
Specifications | XUX0AKSAM12 |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose multimode |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUX |
| Sensor design | Compact 92 x 71 |
| Detection system | Multimode |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring Technique | 3-wire |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M12, 4 pins |
| [Sn] nominal sensing distance | 36.09 Ft (11 m) polarised reflex need reflector
XUZC50
131.23 Ft (40 m) thru beam need a transmitter
XUX0AKSAM12T
6.56 Ft (2 m) diffuse
4.27 ft (1.3 m) diffuse with background suppression |
| Emission | Infrared diffuse
Infrared diffuse with background suppression
Infrared thru beam
Red polarised reflex |
| Enclosure Material | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 49.21 Ft (15 m) polarised reflex
9.84 Ft (3 m) diffuse
196.85 Ft (60 m) thru beam
4.27 ft (1.3 m) diffuse with background suppression |
| Output type | Solid state |
| Add on output | With alarm output, <= 100 mA overload and short-circuit protection |
| Status LED | 1 LED green)supply
1 LED red)instability
1 LED yellow)output state |
| [Us] rated supply voltage | 12...24 V DC reverse polarity protection |
| Current consumption | <= 35 mA no-load |
| Setting-up | Self-teaching |
| Depth | 77 mm |
| Height | 92 mm |
| Width | 31 mm |
| Net Weight | 0.2 kg |
