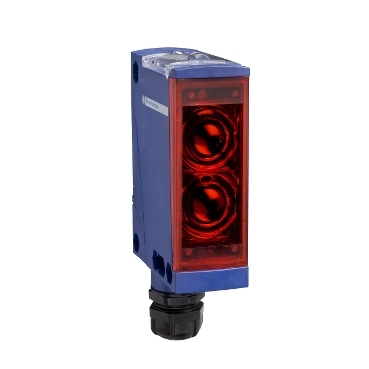

Photo electric sensor, XUX, multi, Sensing 0 to 40 meters, 24 to 240 VAC/DC, terminals
Specifications | XUX0ARCTT16 |
| Range of product | Telemecanique Photoelectric sensors XU |
| Pressure sensor type | Photo-electric sensor |
| Pressure sensor name | XUX |
| Sensor design | Compact 92 x 71 |
| Detection system | Multimode |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | AC/DC |
| Wiring Technique | 5-wire |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor |
| Emission | Infrared diffuse
Infrared diffuse with background suppression
Infrared thru beam
Red polarised reflex |
| [Sn] nominal sensing distance | 36.09 Ft (11 m) polarised reflex need reflector XUZC50
131.2 Ft (40 m) thru beam need a transmitter XUX0ARCTT16T
6.6 Ft (2 m) diffuse
4.3 ft (1.3 m) diffuse with background suppression |
| Enclosure Material | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 49.2 Ft (15 m) polarised reflex
9.8 Ft (3 m) diffuse
196.9 Ft (60 m) thru beam
4.3 ft (1.3 m) diffuse with background suppression |
| Output Type | Relay |
| Cable entry | 1 entry for M16 x 1.5 cable gland 0.3…0.4 in (7…10 mm) |
| Status LED | 1 LED green)supply
1 LED red)instability
1 LED yellow)output state |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Electrical durability | 500000 Cycles 1 60 cyc/mn 250 V
500000 cycles 0.4 60 cyc/mn 250 V |
| Depth | 77 mm |
| Height | 92 mm |
| Width | 31 mm |
| Net Weight | 0.2 kg |
