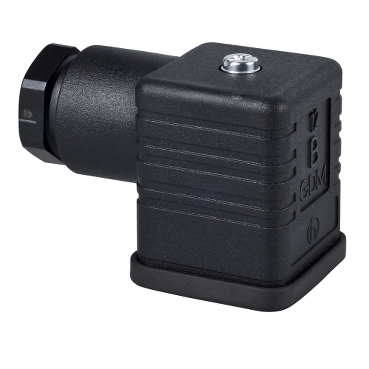

Female, DIN 43650 A, 4 pin, elbowed connector, cable gland Pg 11.
Specifications | XZCC43FCP40B |
| Range of product | Telemecanique Cabling components |
| Accessory / separate part categor | Cabling accessories |
Accessory / separate
part type | Connector |
| Electrical connection | Elbowed female connector DIN 43650 A, 4 pins |
| Status LED | Without |
| Cable connection | Screw terminal / wire size <1.5 mm² / clamping
capacity 7…10 mm |
| Cable gland type | Pg 11 |
| Cable connector fixing | Locking screw |
| [Ue] rated operational voltage | 250 V AC |
| [In] rated current | 16 A |
| Enclosure material | Plastic |
| Minimum insulating resistance | 0.1 GΩ |
| Contact resistance | 4000 µOhm |
| Net weight | 0.035 kg |
