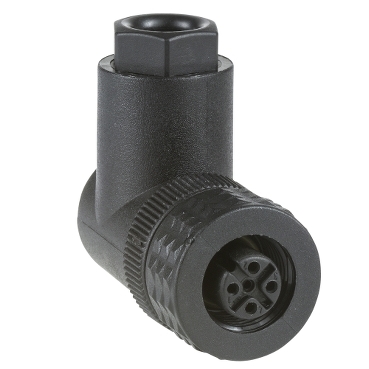

Female, M12, 4 pin, elbowed connector, cable gland Pg 7.
Specifications | XZCC12FCP40B |
| Range of product | Telemecanique Cabling components |
| Accessory / separate part categor | Cabling accessories |
Accessory / separate
part type | Connector |
| Electrical connection | Elbowed female connector M12, 4 pins |
| Collar material | Plastic |
| Status LED | Without |
| Cable connection | Screw terminal / wire size <0.75 mm² / clamping
capacity 3…6 mm |
| Cable gland type | Pg 7 |
| Cable connector fixing | Screw-on |
| [Ue] rated operational voltage | 125 V AC
150 V DC |
| [In] rated current | 3 A |
| Enclosure material | Plastic |
| Minimum insulating resistance | 1000 GΩ |
| Contact resistance | 8000 µOhm |
| Net weight | 0.02 kg |
