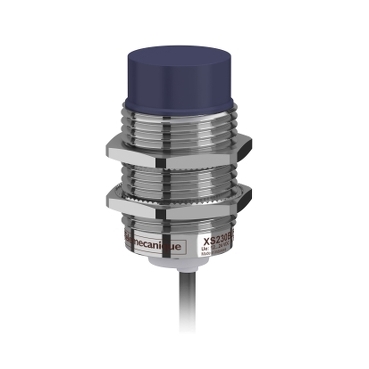

Inductive sensor XS2 M30, L57mm, brass, Sn15mm, 12..24VDC, cable 2m.
Specifications | XS230BLPAL2 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Sensor design | Cylindrical M30 |
| Size | 57 mm |
| Body type | Fixed |
| Enclosure materia | Nickel plated brass |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Detector flush mounting acceptance | Non flush mountable |
| Material | Metal |
| [Sn] nominal sensing distance | 15 mm |
| Discrete output function | 1 NO |
| Discrete output type | PNP |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| Thread type | M30 x 1.5 |
| Detection face | Frontal |
| Front material | PBT |
| Output circuit type | DC |
| Operating zone | 0…12 mm |
| Cable composition | 3 x 0.14 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Supply voltage limits | 10…36 V DC |
| Threaded length | 32 mm |
| Length | 57 mm |
| Net weight (Kg) | 0.155 kg |
