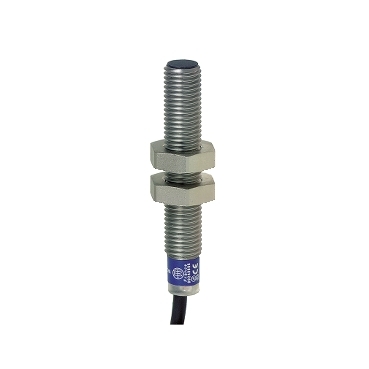

Inductive proximity sensors XS, inductive sensor XS1 M8, L50mm, stainless, Sn1mm, 24...240VAC/DC, cable 2 m.
Specifications | XS1M08MA230 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Sensor design | Cylindrical M8 |
| Size | 50 mm |
| Body type | Fixed |
| Enclosure material | Stainless steel |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing distance | 1 mm |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 24...210 V DC
24...240 V AC |
| Switching capacity in mA | 5...100 mA |
| ISO thread | M8 x 1 |
| Detection face | Frontal |
| Detector flush mounting acceptance | Flush mountable |
| Material | Stainless steel |
| Front material | PPS |
| Output circuit type | AC/DC |
| Cable composition | 2 x 0.11 mm² |
| Height | 8 mm |
| Length | 50 mm |
| Net weight (Kg) | 0.035 kg |
