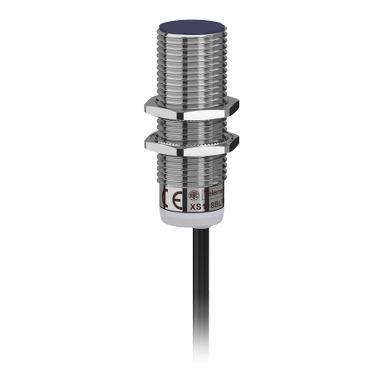

Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 2m.
Specifications | XS118BLPAL2 |
Range of product | Telemecanique Inductive proximity sensors XS |
Series name | General purpose |
Sensor type | Inductive proximity sensor |
Device application | Mobile equipment |
Sensor name | XS1 |
Sensor design | Cylindrical M18 |
Size | 53 mm |
Body type | Fixed |
Enclosure material | Nickel plated brass |
Detector flush mounting acceptance | Flush mountable |
Material | Metal |
Type of output signal | Discrete |
Wiring technique | 3-wire |
[Sn] nominal sensing distance | 5 mm |
Discrete output function | 1 NO |
Output circuit type | DC |
Discrete output type | PNP |
Electrical connection | Cable |
Cable length | 2 m |
[Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
Thread type | M18 x 1 |
Detection face | Frontal |
Front material | PBT |
Operating zone | 0…4 mm |
Differential travel | 1...15% of Sr |
Cable composition | 3 x 0.14 mm² |
Status LED | Output state: 1 LED (yellow) |
Supply voltage limits | 10…36 V DC |
Threaded length | 41 mm |
Length | 53 mm |
Net weight (Kg) | 0.105 kg |
