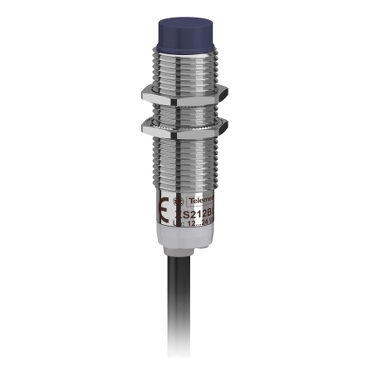

Inductive sensor XS2 M12, L44mm, brass, Sn4mm, 12..24VDC, cable 2m
Specifications | XS212BLPBL2 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Pressure sensor type | Inductive proximity sensor |
| Pressure sensor name | XS2 |
| Sensor design | Cylindrical M12 |
| Local display | Without |
| Size | 44 mm |
| Body type | Fixed |
| Enclosure material | Nickel plated brass |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| [Sn] nominal sensing distance | 4 mm |
| Discrete output function | 1 NC |
| Discrete output type | PNP |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| ISO thread | M12 x 1 |
| Material | Metal |
| Operating zone | 0…3.2 mm |
| Output circuit type | DC |
| Status LED | Output state: 1 LED (yellow) |
| Supply voltage limits | 10…36 V DC |
| Threaded length | 26 mm |
| Length | 44 mm |
| Net weight (Kg) | 0.07 kg |
