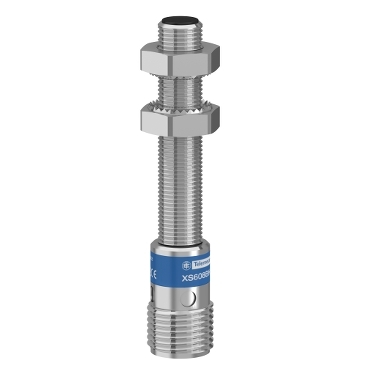

Inductive proximity sensors XS, inductive sensor XS6 M8, L62mm, stainless, Sn2.5 mm, 12...48 VDC, M12.
Specifications | XS608B1PAM12 |
Range of product | Telemecanique Inductive proximity sensors XS |
Series name | General purpose |
Sensor type | Inductive proximity sensor |
Sensor name | XS6 |
Sensor design | Cylindrical M8 |
Size | 62 mm |
Detector flush mounting acceptance | Flush mountable |
Material | Stainless steel |
Type of output signal | Discrete |
Wiring technique | 3-wire |
[Sn] nominal sensing distance | 2.5 mm |
Discrete output function | 1 NO |
Discrete output type | PNP |
Electrical connection | Male connector M12, 4 pins |
[Us] rated supply voltage | 12...48 V DC reverse polarity protection |
Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
Thread type | M8 x 1 |
Detection face | Frontal |
Front material | PPS |
Enclosure material | Stainless steel 303 |
Output circuit type | DC |
Sensing range | > 0...0.1 in (> 0...2.5 mm) |
Operating zone | 0…2 mm |
Cable composition | 2 x 0.34 mm² |
Status LED | Output state: 1 LED (yellow) |
Supply voltage limits | 10…58 V DC |
Threaded length | 40 mm |
Length | 62 mm |
Net weight (Kg) | 0.015 kg |
