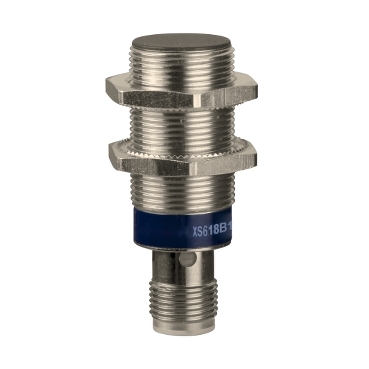

Inductive proximity sensors XS, inductive sensor XS6 M18, L74mm, brass, Sn8mm, 12...48 VDC, M12
Specifications | XS618B1NAM12 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Pressure sensor type | Inductive proximity sensor |
| Pressure sensor name | XS6 |
| Sensor design | Cylindrical M18 |
| Size | 74 mm |
| Body type | Fixed |
| Detector flush mounting acceptance | Flush mountable |
| Material | Metal |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| [Sn] nominal sensing distance | 8 mm |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Discrete output type | NPN |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| Thread type | M18 x 1 |
| Front material | PPS |
| Enclosure material | Nickel plated brass |
| Sensing range | > 4...8 mm |
| Operating zone | 0…6.4 mm |
| Status LED | Output state: 1 LED (yellow) |
| Supply voltage limits | 10…58 V DC |
| Threaded length | 52 mm |
| Length | 74 mm |
| Net weight (Kg) | 0.04 kg |
