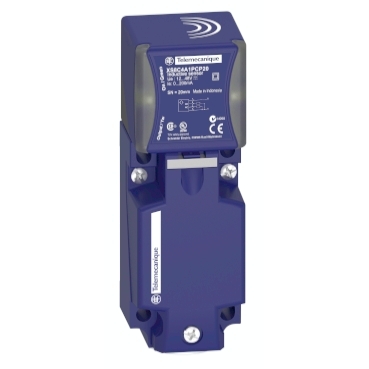

Inductive proximity sensors XS, inductive sensor XS7 40x40x117, PBT, Sn15 mm, 24...240VAC/DC, terminals.
Specifications | XS7C4A1MPP20 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS7 |
| Sensor design | Form 40 x 40 x 117 |
| Body type | Fixed |
| Size | 117 mm |
| Detector flush mounting acceptance | flush mountable |
| Material | Plastic |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing distance | 15 mm |
| Discrete output function | 1 NO or 1 NC programmable |
| Output circuit type | DC/AC |
| Electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz
24...240 V DC |
| Switching capacity in mA | 24...240 V AC 50/60 Hz
24...240 V DC |
| Detection face | 5 positions turret head |
| Front material | PBT |
| Operating zone | 0…12 mm |
| Cable entry number | 1 tapped entry M20 x 1.5 cable gland |
| Status LED | Supply on 1 LED green)
Output state 1 LED yellow) |
| Supply voltage limits | 20…264 V AC/DC |
| Maximum residual current | 1.5 MA open state 120 V
0.6 mA open state 24 V |
| Height | 40 mm |
| Width | 117 mm |
| Length | 40 mm |
| Net weight (Kg) | 0.244 kg |
