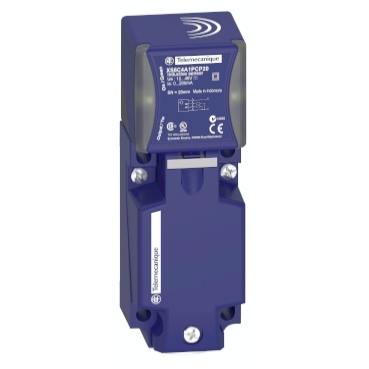

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, terminals.
Specifications | XS8C4A1PCG13 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Mobile equipment |
| Sensor name | XS8 |
| Sensor design | Form 40 x 40 x 117 |
| Body type | Fixed |
| Size | 117 mm |
| Detector flush mounting acceptance | flush mountable |
| Material | Plastic |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 4-wire |
| [Sn] nominal sensing distance | 20 mm |
| Discrete output function | 1 NO + 1 NC |
| Output circuit type | DC |
| Discrete output type | PNP |
| Electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| Detection face | 5 positions turret head |
| Front material | PBT |
| Operating zone | 0…16 mm |
| Cable entry number | 1 tapped entry for Pg 13.5 cable gland |
| Status LED | Supply on: 1 LED (green)
Output state: 1 LED (yellow) |
| Supply voltage limits | 10…58 V DC |
| Current consumption | 0...15 mA no-load |
| Height | 40 mm |
| Width | 117 mm |
| Length | 40 mm |
| Net weight (Kg) | 0.244 kg |
