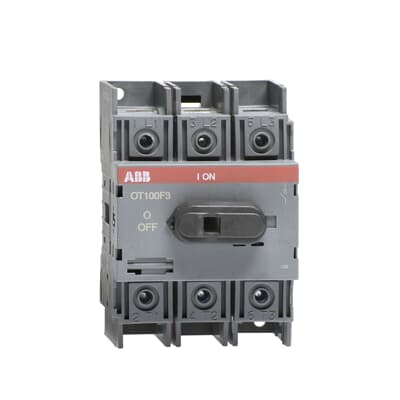

Manual switch-disconnector 3P 100A Handle and shaft are not included (OT100F3).
Specifications | 1SCA105004R1001 |
| Extended Product Type | OT100F3 |
| Range | SWITCH-DISCONNECTOR |
| Country of Origin (Estimated) | Finland (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | OT100F3 SWITCH-DISCONNECTOR |
| Device application | Distribution |
| Number of Poles | 3P |
| [In] rated current | 100A |
| Rated Operational Voltage | Main Circuit 750 V |
| Degree of Protection | Front IP20 |
| Handle Type | Knob
Handle and shaft not included |
| Lock Type | No |
| Mounting Type | Base mounting |
| Operating Mode | Front operated |
| Position of Line Terminals | Top In - Bottom Out
Bottom In - Top Out |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Mechanical Durability | 20000 |
| Rated Conditional Short-Circuit Current (Inc) | (100 A fuse, ≤415 V) 50 kA
(100 A fuse, 500 V) 100 kA
(80 A fuse, 690 V) 50 kA |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A
(500 V) 100 A
(690 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A
(500 V) 100 A
(690 V) 100 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW
(400 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Cable Cross-Section | Cu 10 ... 70 mm² |
Dimensions (mm)
(H x W x D) | 100 x 70 x 74 mm |
| Net Weight | 0.36 kg |
Sản phẩm thông số kỹ thuật
| Tên thuộc tính | Giá trị thuộc tính |
|---|
| Số Cực | 3P |
| Dòng Điện Định Mức | 100A |
| Cần Thao Tác | Tay Gạt |
