1SCA105332R1001 - Cầu Dao Cắt Tải 3P 63A Không Bao Gồm Tay Vặn (OT63F3)

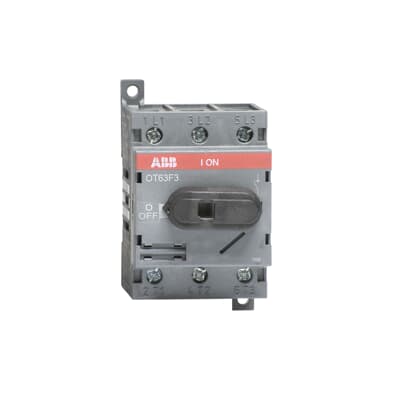

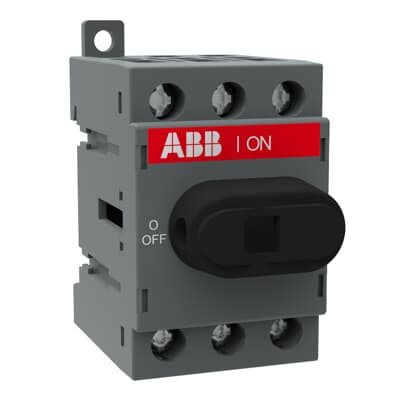

Cầu Dao Cắt Tải 3P 63A (OT63F3)

  • Mã sản phẩm: 1SCA105332R1001
Giá bán: 1.002.500 ₫ (bao gồm VAT)
Giá gốc: 1.909.600 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Manual switch-disconnector 3P 63A Handle and shaft are not included (OT63F3).

Specifications

1SCA105332R1001

Extended Product TypeOT63F3
RangeSWITCH-DISCONNECTOR
Country of Origin (Estimated)Finland (other)
Warranty12 months
CO/CQYes (if need)
Product name & Device short nameOT63F3 SWITCH-DISCONNECTOR
Device applicationDistribution
Number of Poles3P
[In] rated current63A
Rated Operational VoltageMain Circuit 750 V
Degree of ProtectionFront IP20
Handle TypeKnob
Handle and shaft not included
Lock TypeNo
Mounting TypeBase mounting
Operating ModeFront operated
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Mechanical Durability20000
Rated Conditional Short-Circuit Current (Inc)(100 A fuse, ≤415 V) 50 kA
(100 A fuse, 500 V) 100 kA
(80 A fuse, 690 V) 50 kA
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 63 A
(500 V) 63 A
(690 V) 63 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 11 kW
(400 ... 415 V) 22 kW
(500 V) 22 kW
(690 V) 15 kW
Switches Operating MechanismMechanism on Top of the Switch
Tightening Torqueacc. IEC 60947-1 2 N·m
Cable Cross-SectionCu 1.5 ... 35 mm²
Dimensions (mm)
(H x W x D)
91.5 x 52.5 x 72.5 mm
Net Weight0.25 kg
Sản phẩm thông số kỹ thuật
Tên thuộc tínhGiá trị thuộc tính
Số Cực3P
Dòng Điện Định Mức63A
Cần Thao TácTay Gạt
