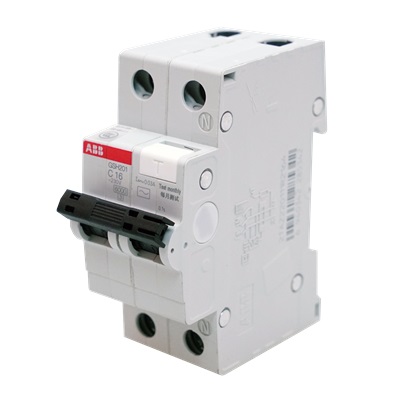

GSH201 AC-C40/0.03 Residual Current Circuit Breaker with Overcurrent Protection.
Specifications | 2TAZ220111R2404 |
| Extended Product Type | GSH201 AC-C40/0.03 |
| Range | Residual Current Circuit Breaker with Overcurrent Protection GSH201 |
| Country of Origin (Estimated) | China (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | GSH201 RCBO |
| Device application | Distribution |
| Number of Poles | 1P+N |
| [In] rated current | 40 A |
| Rated Residual Current | 30 mA |
| Tripping Characteristic | C |
| Type of Residual Current | Type AC |
| Rated Operational Voltage | 230 V AC |
| Rated Short-Circuit Capacity | 6 kA |
| Maximum Breaking Capacity | 6 kA |
Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Right |
| Release Type | C |
| Standards | IEC 61009
GB 16917 |
Dimensions (mm)
(H x W x D) | 85 x 69 x 70 mm |
| Net Weight | 0.171 kg |
