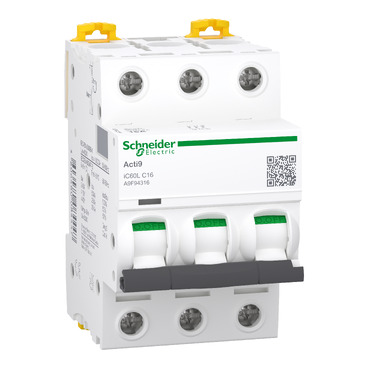

Miniature Circuit Breaker - iC60L - 3P - 16 A - C curve - 15000 A Icn at 400 V AC
Specifications - A9F94316 |
| Range | Miniature circuit-breaker Acti9 iC60L |
| Country of Origin (Estimated) | France (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | MCB Acti9 iC60L |
| Device application | Distribution |
| Poles description | 3P |
| [In] rated current | 16A |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity (Icu) | 15000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
25 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ics] rated service breaking capacity | 12.5 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
12.5 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz |
| Standards | EN 60947-2
IEC 60947-2
EN 60898-1
IEC 60898-1 |
| Network type | DC
AC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Toggle |
| Local signalling | Trip indicator |
| Mounting support | DIN rail |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Net weight | 0.375 kg |
Dimensions (mm)
(H x W x D) | 85x54x78.5 mm |
