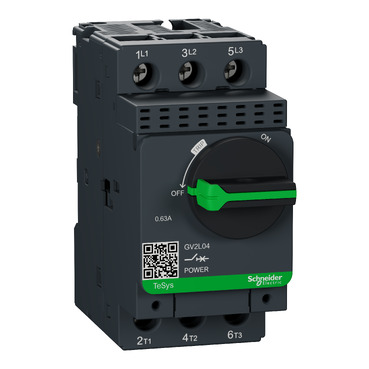

Motor circuit breaker,TeSys Deca frame 2, 3P, 0.63A,magnetic,rotary handle,screw clamp terminals.
| Specifications |
| Range | TeSys GV2
TeSys Deca |
| Country of Origin (Estimated) | Thailand (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | GV2L |
| Device application | Motor protection |
| Poles description | 3P |
| Motor power kW | 0.12 kW at 400/415 V AC 50/60 Hz
0.18 kW at 400/415 V AC 50/60 Hz
0.37 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Rotary handle |
| [In] rated current | 0.63 A |
| Magnetic tripping current | 8A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
Dimensions (mm)
(WxHxD) | 45x89x97 mm |
| Net weight (Kg) | 0.33 Kg |
