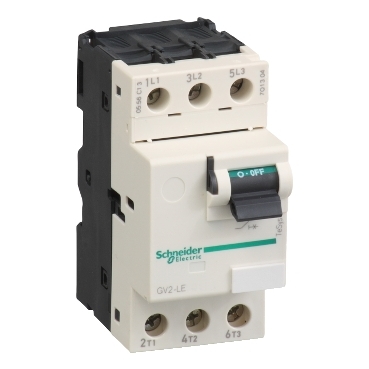

Motor circuit breaker,TeSys Deca frame 2,3P,16A,magnetic,toggle control,screw clamp terminals.
| Specifications |
| Range | TeSys GV2 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | GV2LE |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Poles description | 3P |
| Motor power kW | 5.5 kW at 400/415 V AC 50/60 Hz |
| Breaking capacity | 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Toggle |
| [In] rated current | 14 A |
| Magnetic tripping current | 170 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
Dimensions (mm)
(WxHxD) | 45x89x78.5 mm |
| Net weight (Kg) | 0.33 Kg |
