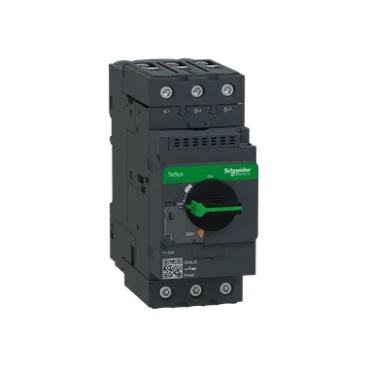

Motor circuit breaker,TeSys Deca frame 3,3P,25A,magnetic,rotary handle,EverLink terminals.
| Specifications |
| Range | TeSys GV2
TeSys Deca |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | GV2L |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Poles description | 3P |
| Motor power kW | 11 kW at 400/415 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 400/415 V AC 50/60 Hz
50 kA Icu at 440 V AC 50/60 Hz |
| [Ics] rated service short-circuit breaking capacity | 100 % at 400/415 V AC 50/60 Hz
100 % at 440 V AC 50/60 Hz |
| Control type | Rotary handle |
| [In] rated current | 25 A |
| Magnetic tripping current | 350 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
Dimensions (mm)
(WxHxD) | 55x132x136 mm |
| Net weight (Kg) | 0.96 Kg |
