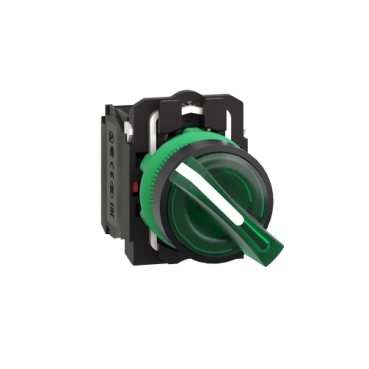

Specifications | XB5AK123B5 |
| Range of product | Harmony XB5 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Illuminated selector switch |
| Device short name | XB5 |
| Mounting diameter | 22.5 mm |
| Bezel material | Dark grey plastic |
| Head type | Standard |
| IP degree of protection | IP67 conforming to IEC 60529
IP69
IP69K |
| Shape of signaling unit head | Round |
| Type of operator | Stay put |
| Operator profile | Green standard handle |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Mechanical durability | 1000000 cycles |
| Positive opening | Without |
| Standards | IEC 60947-1
IEC 60947-5-4
IEC 60947-5-1
JIS C8201-5-1
UL 508
CSA C22.2 No 14
JIS C8201-1 |
| Dimensions (HxWxD) | 42x30x70 mm |
| Net weight | 0.0516 kg |
