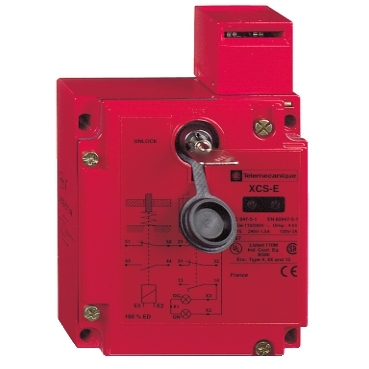

Safety switch, metal XCSE, 2NC+1 NO, slow break, 2 entries tapped Pg 13, 24V.
Specifications | XCSE7311 |
| Range of product | Telemecanique Safety switches XCS |
| Product or component type | Safety switch |
| Device short name | XCSE |
| Design | Rectangular |
| Material | Metal |
| Head type | Key operated turret head |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Solenoid contacts type and composition | 1 NC + 1 NO (slow-break, simultaneous) |
| Cable entry | 2 entries tapped for Pg 13.5 |
| [Us] rated supply voltage | 24 V - 20...10 % |
| Electromagnet interlocking | Locking on de-energisation and unlocking on energisation of solenoid |
| Cable outer diameter | 9…12 mm |
| Electrical connection | Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Number of poles | 3 |
| Locking options description | With interlocking, locking by solenoid |
| Local signalling | 2 LEDs (green or orange) for guard open/guard closed and locked |
| Signalling circuit voltage | 24/48 V (voltage limits: 20...52 V) |
| Positive opening | With NC contact |
| Supply voltage type | AC/DC |
| Supply frequency | 50/60 Hz |
| Load factor | 1 |
| Signalling circuit type | AC/DC |
| Mechanical durability | 1000000 cycles |
| Protection type | Overvoltage protection for signalling circuit |
| Body materia | Zamak |
| Head material | Zamak |
| Depth | 44 mm |
| Height | 146 mm |
| Width | 98 mm |
| Net Weight | 1.14 kg |
