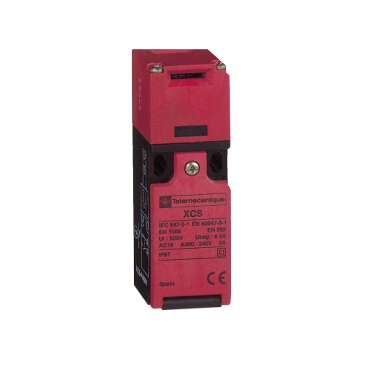

Safety switches plastic XCSPA, 1NO + 1NC, slow break, 1 entry tapped 1/2" NPT.
Specifications | XCSPA693 |
| Range of product | Telemecanique Safety switches XCS |
| Product or component type | Safety switch |
| Device short name | XCSPA |
| Design | Compact |
| Material | Plastic |
| Head type | Key operated turret head |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break, make before break |
| Cable entry | 1 entry tapped for 1/2" NPT |
| Electrical connection | Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Number of poles | 2 |
| Locking options description | Double insulated |
| Insulation | Double insulated |
| Positive opening | With NC contact |
| Mechanical durability | 1000000 cycles |
| [Ie] rated operational current | 6 A at 120 V, AC-15, A300 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 |
| Body material | PA (polyamide) |
| Head material | PA (polyamide) |
| Depth | 30 mm |
| Height | 107 mm |
| Width | 30 mm |
| Net Weight | 0.11 kg |
