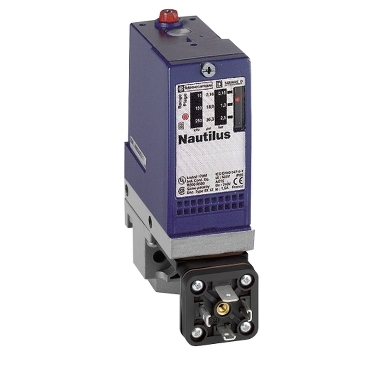

Pressure switch XMLA 160 bar - fixed scale 1 threshold - 1 C/O.
Specifications | XMLA160D2C11 |
Range of product | Telemecanique Pressure sensors XM |
Pressure sensor type | Electromechanical pressure sensor |
| Pressure sensor name | XMLA |
| Pressure rating | 160 bar |
| Controlled fluid | Hydraulic oil (0…160 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Electrical connection | 1 male connector EN 175301-803-A (ex DIN43650),
4 pins |
| Contacts type and composition | 1 C/O |
| Pressure switch type of operation | Detection of 1 single threshold |
| Electrical circuit type | Control circuit |
| Scale type | Fixed differential |
| Local display | With |
| Adjustable range of switching point on rising pressure | 10…160 bar |
| Adjustable range of switching point on falling pressure | 4.5…142 bar |
| Maximum permissible accidental pressure | 360 bar |
| Destruction pressure | 720 bar |
| Pressure actuator | Piston |
| Materials in contact with fluid | FPM, FKM
Steel
Brass
PTFE |
| [In] rated current | 3 A, B300, AC-15 (Ue = 120 V) conforming to IEC
60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to IEC
60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to IEC
60947-5-1 |
| Natural differential at low setting | 5.5 bar (+/- 1 bar) |
| Natural differential at high setting | 18 bar (+/- 3 bar) |
| Maximum permissible pressure - per cycle | 200 bar |
| Setting | External |
| Standards | IEC 60947-5-1
UL 508
CE
CSA C22.2 No 14 |
Dimensions (mm)
(H x W x D) | 113 x 75 x 35 mm |
| Net weight (Kg) | 0.78 kg |
