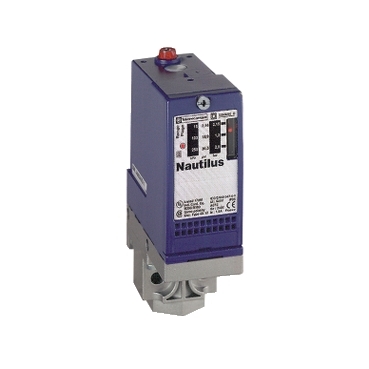

Pressure switch XMLA 35 bar - fixed scale 1 threshold - 1 C/O.
Specifications | XMLA035A2S14 |
Range of product | Telemecanique Pressure sensors XM |
Pressure sensor type | Electromechanical pressure sensor |
| Pressure sensor name | XMLA |
| Pressure rating | 35 bar |
| Controlled fluid | Air (0…70 °C)
Fresh water (0…70 °C)
Hydraulic oil (0…70 °C) |
| Fluid connection type | PT 1/4 (female) |
| Cable entry | Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² |
| AWG gauge | AWG 20...AWG 14 |
| Cable entry | Cable gland 7…13 mm |
| Contacts type and composition | 1 C/O |
| Pressure switch type of operation | Detection of 1 single threshold |
| Electrical circuit type | Control circuit |
| Scale type | Fixed differential |
| Local display | With |
| Adjustable range of switching point on rising pressure | 1.5…35 bar |
| Adjustable range of switching point on falling pressure | 0.25…33.75 bar |
| Maximum permissible accidental pressure | 80 bar |
| Destruction pressure | 160 bar |
| Pressure actuator | Diaphragm |
| Materials in contact with fluid | Nitrile
Brass
Zinc alloy |
| [In] rated current | 3 A, B300, AC-15 (Ue = 120 V) conforming to IEC
60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to IEC
60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to IEC
60947-5-1 |
| Natural differential at low setting | 1.25 bar (+/- 0.25 bar) |
| Natural differential at high setting | 1.25 bar (+/- 0.25 bar) |
| Maximum permissible pressure - per cycle | 45 bar |
| Setting | External |
| Standards | IEC 60947-5-1
CE |
Dimensions (mm)
(H x W x D) | 113 x 75 x 35 mm |
| Net weight (Kg) | 0.695 Kg |
