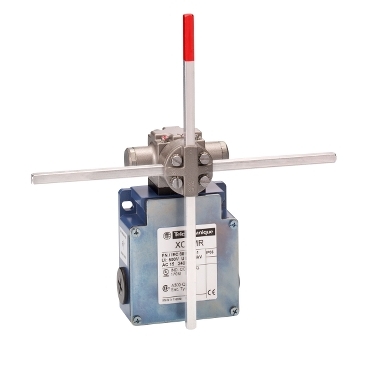

Limit switches XC Standard, XCKMR, stay put crossed rods lever 6 mm, 2x(2 NC), slow, M20.
Specifications | XCKMR54D1H29 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Special format |
| Product or component type | Limit switch |
| Product specific application | For hoisting and mechanical handling applications |
| Device short name | XCKMR |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Type of approach | Lateral approach, 2 directions |
| Cable entry number | 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm |
| Number of poles | 4 |
| Contacts type and composition | 2 x (2 NC) |
| Contact operation | Slow-break, staggered |
| Switch actuation | By any moving part |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts insulation form | Zb |
| Number of steps | 5 electrical positions |
| Contact block per direction [control circuit] | 1 per direction |
| Positive opening | With |
| Mechanical durability | 2000000 cycles |
| Depth | 59 mm |
| Height | 118 mm |
| Width | 200 mm |
| Net Weight | 0.55 kg |
