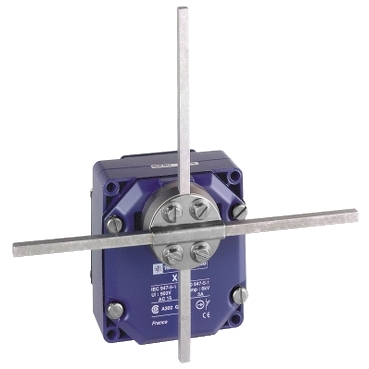

Limit switches XC Standard, XCR, metal stay put T rods lever square rod 6 mm, 2X(1NC+NO).
Specifications | XCRF17 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Special format |
| Product or component type | Limit switch |
| Product Specific Application | For hoisting and mechanical handling applications |
| Device short name | XCR |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zinc alloy |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Stay put crossed rods lever metal square rod 6 mm |
| Type of approach | Lateral approach, 2 directions |
| Number of poles | 4 |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Contact operation | Snap action |
| Contact block per direction [control circuit] | 1 per direction |
| Positive opening | With |
| Switch actuation | By any moving part |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm conforming to NF C 68-30 |
| Number of steps | 1 |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Contacts insulation form | Zb |
| Mechanical durability | 10000000 cycles |
| Depth | 75 mm |
| Height | 95 mm |
| Width | 85 mm |
| Net Weight | 1.135 kg |
