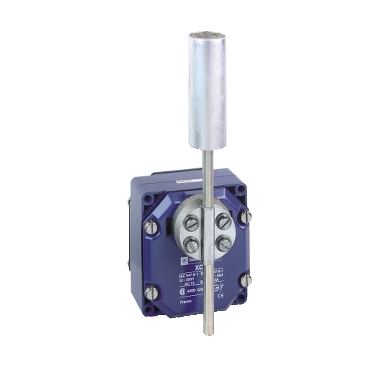

Limit switch XCRT - metal enclosure zinc plated steel roller with lever - 2C/O
Specifications | XCRT115 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Special format |
| Product or component type | Limit switch |
| Product Specific Application | For conveyor belt shift monitoring |
| Device short name | XCRT |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zinc alloy |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller zinc plated steel with lever |
| Type of approach | Lateral approach, 2 directions |
| Number of poles | 2 |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contact block per direction [control circuit] | 2 per direction |
| Positive opening | Without |
| Switch actuation | By conveyor belt |
| Electrical connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland 0.4…0.5 in (9…12 mm) NF C 68-300 |
| Number of steps | 2 |
| Terminals description ISO n°1 | (11-12)NC
(13-14)NO |
| Contacts insulation form | Za |
| Mechanical durability | 300000 cycles |
| Depth | 75 mm |
| Height | 95 mm |
| Width | 85 mm |
| Net Weight | 1.17 kg |
